Be aware on many bad and rough tooling that you see on site as well. I have many customers asked me the same questions that how about yours vs theirs. I post run out numbers and video in description, and you can test after receive. However, many other vendors are over or false describe their tool holders and collets. Based on customers who got ripped off from many cheap sellers, the total run out on their bad tool holders and collets could be in 5 thousands rather than 5 tenth, and the drill chuck could be in 10 thousands, plus pull studs break left right. So regardless how cheap they are, it's useless scrap, which is supposed to be sold by weight, not pieces

This is my chuck and collets, see two videos below, indicator is the same 0.0001". Total run out of holder and good set of collets are less than 0.0005", tool holder alone without collets are 0.0001". Since it's balanced, so regardless of speed, holder and collets will running true. Both tool holders and collets must be running true in order get total run out to minimum

cat40er321

Video will open in a new window

Using the mobile app? Copy this link into your browser:

cat40er3211

Video will open in a new window

Using the mobile app? Copy this link into your browser:

Features:

6PC CAT40 End Mill Holder

Projection Length: 2.5"
6PC Common Size: 1/4, 3/8, 1/2, 5/8, 3/4, 1"
Precision high speed end mill holder for durability and rigidity
Holder balanced for accuracy
Provides a very close tolerance fit with minimum runout between the tool holder's bore and the cutting tool
Thru Hole of the tool holder allows the use of Thru Coolant Tools when used with a Thru Coolant retention knob

Collet Chuck

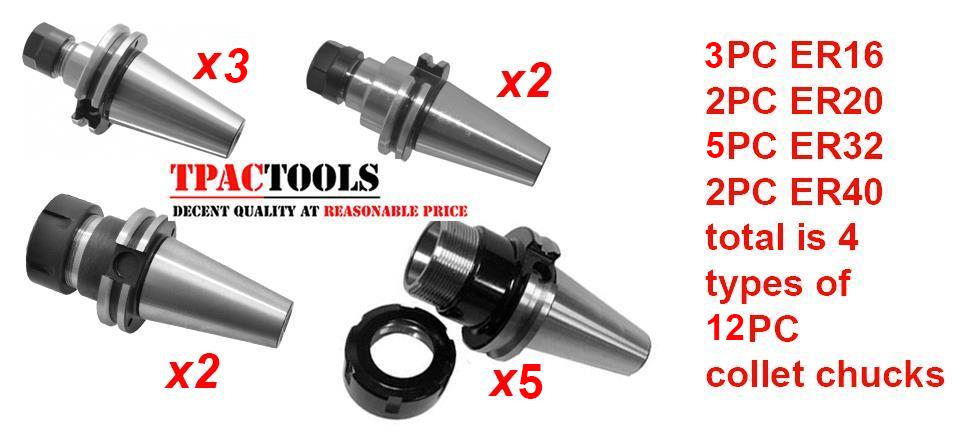

5PC CAT40 ER32 Chuck
3PC CAT40 ER16 Chuck
2PC CAT40 ER20 Chuck
2PC CAT40 ER40 Chuck

All collec Chuck Gage or projection length of ER16 is 2.75"
Accuracy in Tenth, 0.0003"
Fully ground flange and V-groove — easy on tool changers for less spindle and
changer maintenance
V-Flange CAT 40 is production balanced to high speed spindle turning and meet standard industrial needs
High Speed True Balance in 15-20K RPM
Hardened and ground to ensure maximum accuracy
Through spindle coolant capability from pull stud to collets

3PC 1/2 Precision Keyless Drill Chuck

Keyless Drill Chuck Capacity, all 3 chucks are the same, they are 1/2" chuck
Drill chuck has very strong holding power.
All Jaws are Hardened
V-Flange CAT 40 is production balanced and meet standard industrial needs

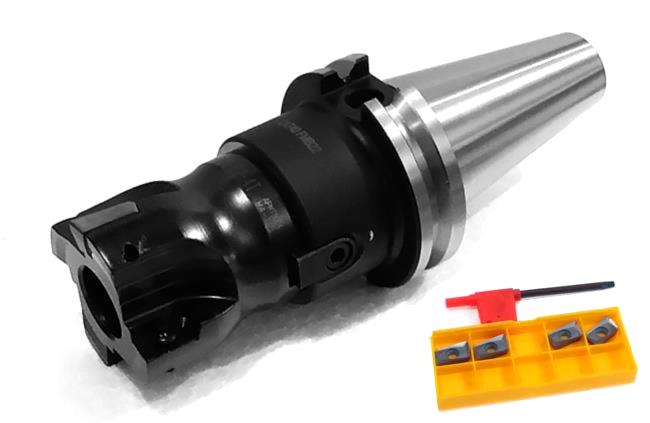

1PC Face Mill Cutter:

2" cutting diameter
5PC general purpose carbide inserts,
it's a combination of a tough, special cemented carbide substrate and CVD coated grade for milling of steel up to 30-35 HRC before heat treat.

Collets Set:

12PC ER32 Collets Set By 1/16 and 1/32
7PC ER32 collets in common size

10PC ER16 Collets 1/16-3/8

7PC ER20 Collets in common size

11PC ER40 Collets by 1/16

Made of high grade spring steel
Ground roughness is Ra0.4 Microns, plus overall fine polish

12PC ER32 set by 16th: 1/8"; 3/16"; 7/32", 1/4"; 5/16"; 3/8"; 7/16"; 1/2"; 9/16"; 5/8"; 11/16"; 3/4"
7PC ER32 Common Size: 1/8, 1/4, 5/16 , 3/8, 1/2, 5/8, 3/4.

7PC ER20 Common Size: 1/16, 1/8, 3/16, 1/4, 5/16 , 3/8, 1/2

10PC ER16 Size: 1/32", 1/16", 3/32", 1/8", 3/16", 7/32", 1/4", 5/16", 11/32", 3/8"

11PC ER40 Collets: 1/8"; 3/16"; 1/4"; 5/16"; 3/8"; 1/2"; 5/8"; 3/4"; 1'; 1-1/16", 1-1/8"

T.I.R.: 0.0003" or 5um. In order to make all collets running true, on your side, make sure your machine spindle and chuck holder running true, on my side, I'll make sure all those collets running in tenth.

Special angled slots increase rigidity
Better overall balance of tool holder assembly
Protects tool holder from contaminants
Use with any standard ER collet chucks for coolant-thru tool applications.

Free Items Included in this pacakge:

Free mazak CAT40 pull stud fit on most of mazak and fadal CAT40 Spindle cnc mill
Free ER Spanner wrench
Free Shipping in US

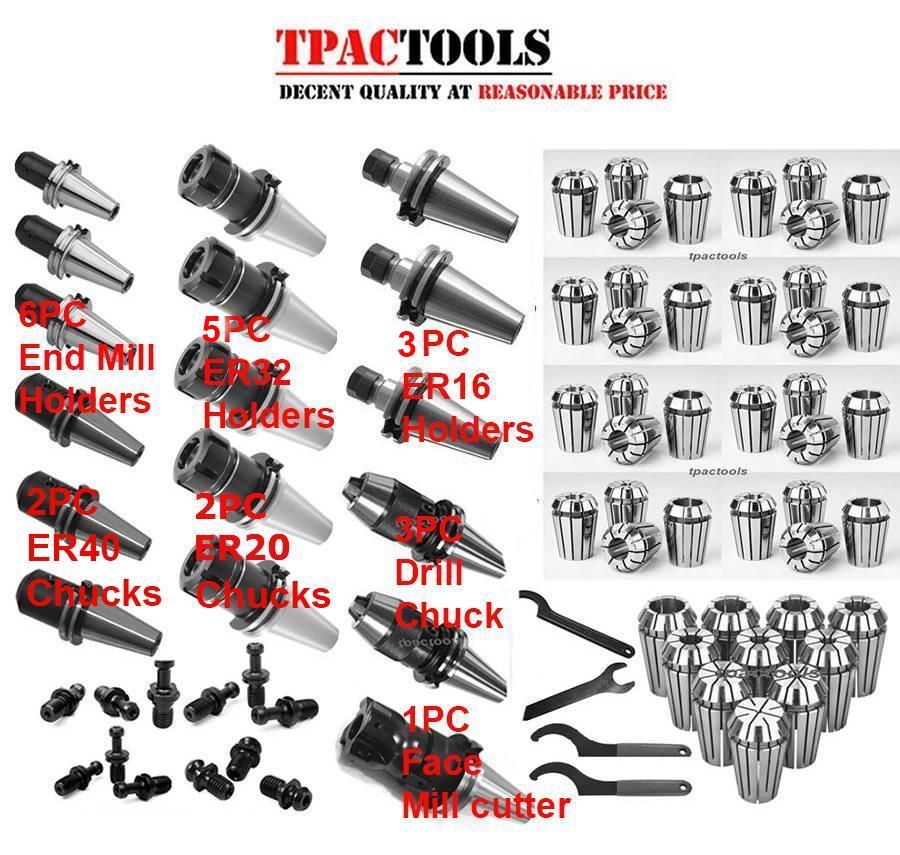

All items include:

6PC common size end mill holder, 5PC ER32 chuck, 2PC ER20 Chuck, 3PC ER16 chuck, 2PC ER40 chuck, 3PC drill chuck, 1PC face mill cutter, 12+7PC ER32 collets, 7PC ER20 collets, 10PC ER40 collets, 10PC ER 16 collets and more

It's a value and quality tooling package, all chucks and holders have been high speed pre-balanced to G2.5 @ 15-20K RPM, all collets are in 0.0003", any questions, let me know.

Total Run out

Collet chuck is 1-2 tenth, collets is 3 tenth, so chuck and collets together is around 5 tenth or half thousands, plus machine spindle run out, if spindle is true enough or less than 1 tenth, we can ignore. Total run out is the sum of chuck, collets and spindle, so choose correct tooling for correct application
