BT40 TOOLING STARTER PACKAGE ER32 ER16 COLLET SET END MILL HOLDER DRILL CHUCK FACE MILL NEW

Part Number TP-715
review 0 Review(s)
0
BT40 TOOLING STARTER PACKAGE ER32 ER16 COLLET SET END MILL HOLDER DRILL CHUCK FACE MILL NEW
Email a friend Email a friend
Review this item Review this item
Price
Your Price:
$575.00
Availability:
In stock
Free Shipping
Quantity
Description


BT40 STARTING TOOLING PACKAGE ER32 ER16 COLLET SET, COLLET CHUCK, END MILL HOLDER, DRILL CHUCK, FACE MILL

BRAND NEW

Accuracy in Tenth

High Speed True Balance in 15-20K RPM

6PC END MILL HOLDER

3PC ER32 COLLET CHUCK
2PC ER16 COLLET CHUCK

1PC 1/2 Keyless Drill Chuck

1PC Face Mill Cutter

12PC ER32 COLLET SET BY 1/16

10PC ER16 COLLETS SET BY 1/32

FREE SPANNER WRENCH ON COLLET CHUCK AND DRILL CHUCK


ALL END MILL HOLDER, COLLET CHUCK AND DRILL CHUCK ARE HIGH SPEED PROVED AND BALANCED TO G2.5 @ 20k RPM TO MEET ALL INDUSTRIAL REQUIREMENT


Free Shipping in US




Features:

6PC BT40 End Mill Holder
  • Projection Length: 2.5"
  • 6PC Common Size: 1/4, 3/8, 1/2, 5/8, 3/4, 1"
  • Precision high speed end mill holder for durability and rigidity
  • Holder balanced for accuracy
  • Provides a very close tolerance fit with minimum runout between the tool holder's bore and the cutting tool
  • Thru Hole of the tool holder allows the use of Thru Coolant Tools when used with a Thru Coolant retention knob

http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/896405658_o.jpg

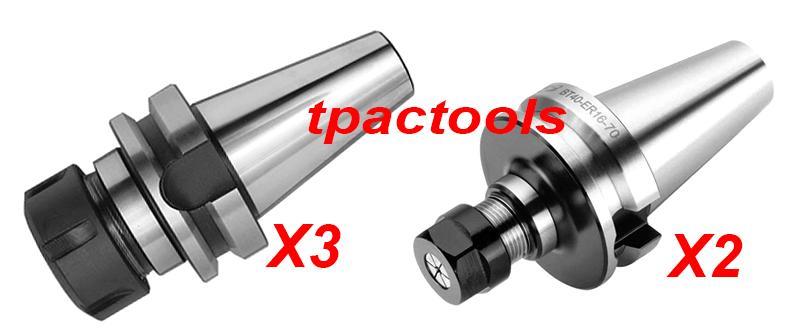

3PC BT40 ER32 Chuck
2PC BT40 ER16 Chuck

  • Both ER32 and ER16 Chuck Gage or projection length of ER16 is 2.75"
  • Accuracy in couple tenth
  • changer maintenance
  • V-Flange BT40 is production balanced to high speed spindle turning and meet standard industrial needs
  • High Speed True Balance in 15-20K RPM
  • Even though all sellers are saying balance, but it's not true, few smart guy copy few words from seller A, and another words from seller B to make up their description or over describe the item. It's easy to find out balance or not, set spindle speed higher, and you'll see the difference, could be couple thousands, true balanced holder works the same way at low and high speed even up 20K RPM, however, poor or not evenly balanced only works normally under low spindle speed.
  • Hardened and ground to ensure maximum accuracy
  • Through spindle coolant capability from pull stud to collets


http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/896405664_o.jpg





1PC Precision Keyless Drill Chuck
  • Keyless Drill Chuck 1/2 Capacity
  • Drill chuck has very strong holding power.
  • All Jaws are Hardened
  • V-Flange BT40 is production balanced and meet standard industrial needs



http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/866702306_o.jpg




1PC Face Mill Cutter:
  • 2" cutting diameter
  • 5PC general purpose carbide inserts,
  • it's a combination of a tough, special cemented carbide substrate and CVD coated grade for milling of steel up to 30-35 HRC before heat treat.


http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/896405668_o.jpg





12PC ER32 Collets Set By 1/16
  • Made of high grade spring steel
  • Ground roughness is Ra0.4 Microns, plus overall fine polish
  • 12PC set by 16th:  1/8"; 3/16"; 7/32", 1/4"; 5/16"; 3/8"; 7/16"; 1/2"; 9/16"; 5/8"; 11/16"; 3/4".
  • T.I.R.: 0.0003" or 5um. In order to make all collets running true, on your side, make sure your machine spindle and chuck holder running true, on my side, I'll make sure all those collets running in tenth.
  • Special angled slots increase rigidity
  • Better overall balance of tool holder assembly
  • Protects tool holder from contaminants
  • Use with any standard ER collet chucks for coolant-thru tool applications.

http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/669668666_o.jpg



http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/669668655_o.jpg



10PC ER16 Collets by 1/32
  • Made of high grade spring steel
  • 10PC Size: 1/32", 1/16", 3/32", 1/8", 3/16", 7/32", 1/4", 5/16", 11/32", 3/8"
  • T.I.R.: 0.0003" or 5um. In order to make all collets running true, on your side, make sure your machine spindle and chuck holder running true, on my side, I'll make sure all those collets running in tenth.
  • Special angled slots increase rigidity
  • Better overall balance of tool holder assembly

http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/669668625_o.jpg



http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/669668674_o.jpg




Free Items Included in this pacakge:
  • Free ER Spanner wrench
  • Free Shipping in US





http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/895865463_o.jpg

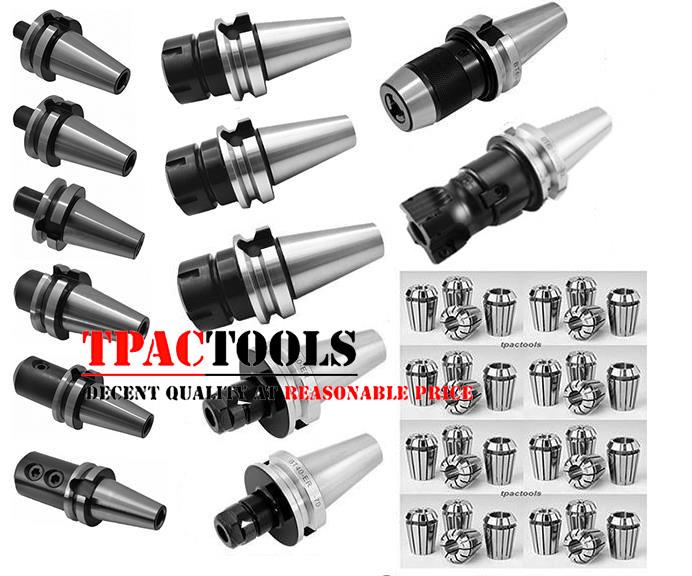

All items include:
6PC common size end mill holder, 3PC ER32 chuck, 2PC ER16 chuck, 1PC drill chuck, 1PC face mill cutter, 12PC ER32 collets, 10PC ER 16 collets and more


It's a value and quality BT40 starting tooling package, all chucks and holders have been high speed pre-balanced to G2.5 @ 20K RPM, all collets are in 0.0003", any questions, let me know.


Total Run out

Total runout is a sum of runout of collets, chuck or holder, and machine spindle. On CAT40 or BT40 spindle, you're expecting half thousands overall runout with these collets and collet holder. So collets alone is about 3 tenth, then you add chuck run out 1 or 2 tenth, it comes up about half thousands or 5 tenth, so choose correct tooling for correct application


Shipping:

Ship out from Chicago

Free Shipping in US regardless of qty

Return:

30 Days return policy
