BT40 TOOLING PACKAGE ER32 ER16 COLLET SET END MILL HOLDER DRILL CHUCK NEW FACE MILL NEW

Part Number TP-714
review 0 Review(s)
0
BT40 TOOLING PACKAGE ER32 ER16 COLLET SET END MILL HOLDER DRILL CHUCK NEW FACE MILL NEW
Email a friend Email a friend
Review this item Review this item
Price
Your Price:
$825.00
Availability:
In stock
Free Shipping
Quantity
Description


BT40 TOOLING PACKAGE ER32 ER16 COLLET SET, COLLET CHUCK, END MILL HOLDER AND DRILL CHUCK FACE MILL

BRAND NEW

 Accuracy in Couple Tenth On Collet and Chuck Together

High Speed True Balance in 15-20K RPM

6PC END MILL HOLDER

5PC ER32 COLLET CHUCK
3PC ER16 COLLET CHUCK

12PC ER32 COLLET SET BY BOTH 1/16
7PC ER32 COLLET SET COMMON SIZE

10PC ER16 COLLETS SET BY 1/32

2PC Keyless Drill Chuck 1/2"

1PC Face Mill Cutter with Carbide Inserts

FREE SPANNER WRENCH ON COLLET CHUCK


ALL END MILL HOLDER, COLLET CHUCK AND DRILL CHUCK ARE HIGH SPEED PROVED AND BALANCED TO G2.5 @ 20K RPM TO MEET ALL INDUSTRIAL REQUIREMENT


Free Shipping in US




Features:

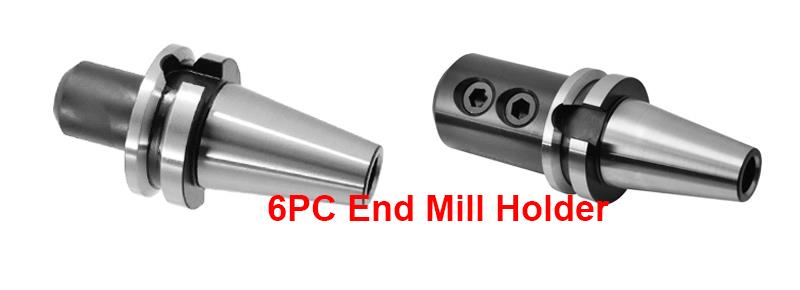

6PC BT40 End Mill Holder
  • Projection Length: 2.75"
  • 6PC Common Size: 1/4, 3/8, 1/2, 5/8, 3/4, 1"
  • Precision high speed end mill holder for durability and rigidity
  • Holder balanced for accuracy
  • Provides a very close tolerance fit with minimum runout between the tool holder's bore and the cutting tool
  • Thru Hole of the tool holder allows the use of Thru Coolant Tools when used with a Thru Coolant retention knob


http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/896405658_o.jpg



5PC BT40 ER32 Chuck
3PC BT40 ER16 Chuck

  • Both ER32 and ER16 Chuck Gage or projection length of ER16 is 2.75"
  • Accuracy in Tenth, 0.0001"
  • Fully ground flange and V-groove easy on tool changers for less spindle and
  • changer maintenance
  • V-Flange BT40 is production balanced to high speed spindle turning and meet standard industrial needs
  • High Speed True Balance in 15-20K RPM

  • Even though all sellers are saying balance, but it's not true, few smart guy copy few words from seller A, and another words from seller B to make up their description or over describe the item. It's easy to find out balance or not, set spindle speed higher, and you'll see the difference, could be couple thousands, true balanced holder works the same way at low and high speed even up 20K RPM, however, poor or not evenly balanced only works normally under low spindle speed.

    Hardened and ground to ensure maximum accuracy
  • Through spindle coolant capability from pull stud to collets



http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/896411248_o.jpg






12PC ER32 Collets Set By 1/16:
7PC ER32 collets in common size:

  • Made of high grade spring steel
  • Ground roughness is Ra0.4 Microns, plus overall fine polish
  • 12PC by 16th:  1/8"; 3/16"; 7/32", 1/4"; 5/16"; 3/8"; 7/16"; 1/2"; 9/16"; 5/8"; 11/16"; 3/4"
  • 7PC Common Size: 1/8, 1/4, 5/16 , 3/8, 1/2, 5/8, 3/4.
  • T.I.R.: 0.0003" or 5um. In order to make all collets running true, on your side, make sure your machine spindle and chuck holder running true, on my side, I'll make sure all those collets running in tenth.
  • Special angled slots increase rigidity
  • Better overall balance of tool holder assembly
  • Protects tool holder from contaminants
  • Use with any standard ER collet chucks for coolant-thru tool applications.

http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/669668666_o.jpg



http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/669668655_o.jpg

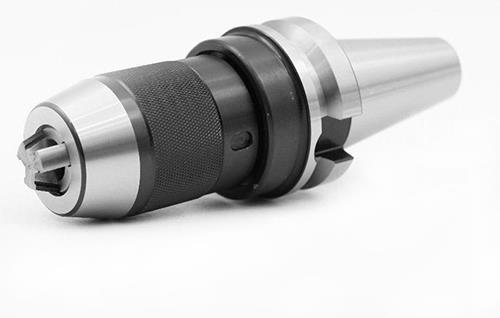

2PC 1/2" Precision Keyless Drill Chuck
  • Keyless Drill Chuck Capacity, 1/2".
  • Drill chuck has very strong holding power.
  • All Jaws are Hardened
  • V-Flange BT40 is production balanced and meet standard industrial needs



http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/866702306_o.jpg




10PC ER16 Collet set by 1/32
  • Made of high grade spring steel
  • 10PC Size: 1/32", 1/16", 3/32", 1/8", 3/16", 7/32", 1/4", 5/16", 11/32", 3/8"
  • T.I.R.: 0.0003" or 5um. In order to make all collets running true, on your side, make sure your machine spindle and chuck holder running true, on my side, I'll make sure all those collets running in tenth.
  • Special angled slots increase rigidity
  • Better overall balance of tool holder assembly



http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/669668625_o.jpg



http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/669668674_o.jpg

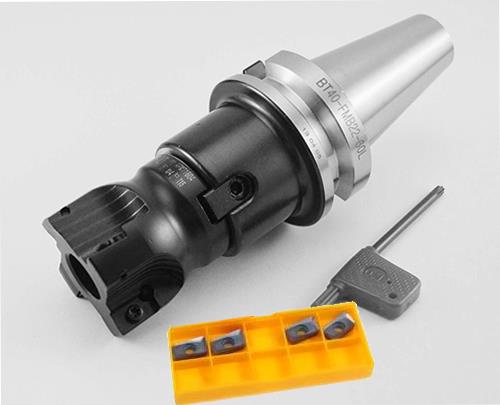

1PC Face Mill Cutter
  • 2" cutting diameter
  • 5PC general purpose carbide inserts,
  • it's a combination of a tough, special cemented carbide substrate and CVD coated grade for milling of steel up to 30-35 HRC before heat treat.



http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/896405668_o.jpg




  • Free Items Included in this pacakge:
  • Free ER Spanner wrench
  • Free Shipping in US




http://img.auctiva.com/imgdata/4/4/5/1/6/9/webimg/894133406_o.jpg




All items include:
6PC common size end mill holder, 5PC ER32 chuck, 3PC ER16 chuck, 12+7PC ER32 collets, 10PC ER 16 collets, 2PC drill chuck and more


It's a value and quality BT40 tooling package, all chucks and holders have been high speed pre-balanced to G2.5 @ 20K RPM, all collets are in 0.0003", any questions, let me know

Total Run out

Total runout is a sum of runout of collets, chuck or holder, and machine spindle. On CAT40 or BT40 spindle, you're expecting half thousands overall runout with these collets and collet holder. So collets alone is about 3 tenth, then you add chuck run out 1 or 2 tenth, it comes up about half thousands or 5 tenth, so choose correct tooling for correct application

Shipping:

Ship out from Chicago

Free Shipping in US regardless of qty

Return:

30 Days return policy
