4 Axial Digital Read Out Mill Package Fits on Universal Size Milling Machine
3 Linear Glass Scales on X, Y and KneeOne Digital Vertical Scale Installed on MIll Quill Head Brand New
Display Unit: -
Resolution: 0.0002", repeatability: 0.0002" -
Resolution switch function -
Bolt hole patterns, centerline calculation -
Preset set and zero reset , tool error compensation -
Absolute / Incremental , Inch / Metric -
Message Prompts, Memory back-up 80V-240V, Can be used Globally - Display
only has 3 input port, so digital scale won't be able to connect
through. You must read quill travel from digital scale itself
- X, Y and Knee travel will be shown on 3 axis display unit
 |
multifunctional: 3 Axis Display Work on Both Mill and Lathe Resolution: 0.0002"
| Leaner Glass Scales:  | | - Resolution: 0.0002"
- Accuracy: 5um
- Super precision
- Beautiful body finish
- Max. response speed: 60 In / Sec.
- Aluminum outside cover
- sealed anti oil and coolant
- Cable is long enough
| | Scale Thickness G: 1.2" / 29mm Scale Height H: 2.6" / 67mm Digital Counter Thickness I: 1.1" / 26mm |
Each scale come with a fitted aluminum cover and mounting screws You
may need to make your own mounting bracket to install Y Axis Scales.
It's super easy, see installation picture below. Many people don't like
the original one and they make their own to fit on machine | X Y Scales Installation:
X Scale installed on the back of the table |
Y Scale installed under table with brackets |
This is the scale installed on knee
|
Digital vertical scale
installed on the quill. Installation is your part. Scale body is steel,
and you can cut shorter to fit on quill. Scale is about 5-6" travel.
This quill scale won't be connect to display unit, so you'll read quill travel from digital scale itself.
|
X and Y Demo |
4 Axis Mill Package Available:
Options |
Scale Travel Y, X, Knee, Quill
|
Fits on Milling Machine Table Size |
|
MA |
12 x 24 x14 x5"
|
8x36", 9x36" |
|
MB |
12 or 14 x 30 x5" |
Bridgeport 9x42" |
|
MC |
14x38x16x5" |
9x49" |
|
MD |
16x38x20x5" |
10x54" |
|
ME |
|
Many Other size |
Available scale size for both mill
Size
|
Scale
Travel Length
|
Scale
Overall Length Longer than Travel Size
|
|
1
|
4-4.5"
|
8"
|
|
2
|
8"
|
12"
|
|
3
|
10”
|
15
|
|
4
|
12”
|
18”
|
|
5
|
14”
|
20”
|
|
6
|
16”
|
22”
|
|
7
|
20”
|
25"
|
|
8
|
24”
|
30"
|
|
9
|
30"
|
36"
|
|
10
|
38-39"
|
46"
|
|
11
|
Digital Quill Scale 5-6" Travel
|
You can shorter to fit on quill
|

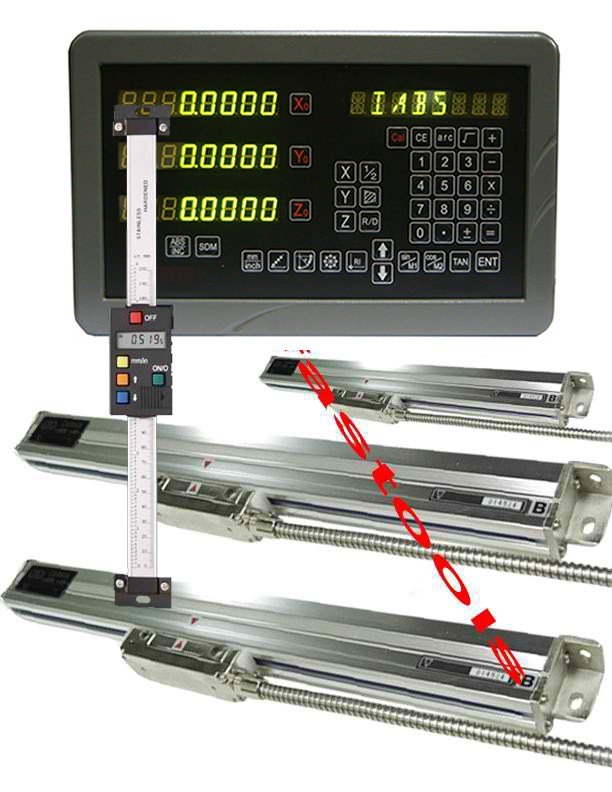

Package include: One Multifunctional 3 axis display unit with arm and stand 3 linear glass scales One Digital Quill Scale 5-6" Travel
Display operation manual and scale installation guide All installation hardware, much more than what you see from picture
Shipping: $15 Ground Shipping in 48 States
$39 ship to HI, AK and PR
Ship out from Chicago
To Canada and Mexico, $59 via USPS Air Mail. Warranty and Return: 30 days return policy. Industrial
standard quality, as long as you can install properly, you'll like it.
Thousands of people installed already, and it's easy and professional.
Any questions regarding the scale travel size selection, please
Send Email |
